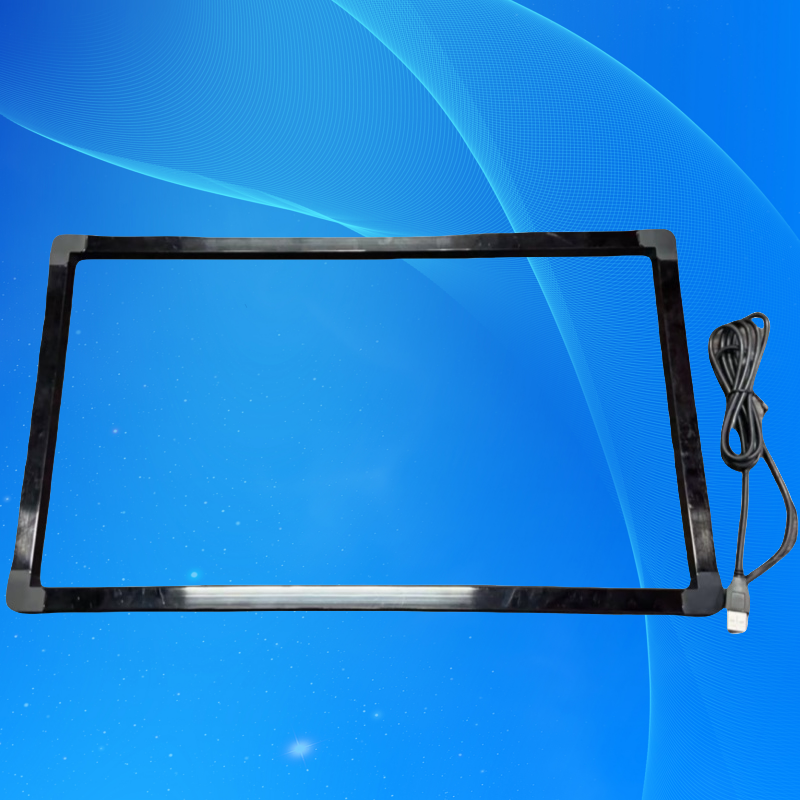

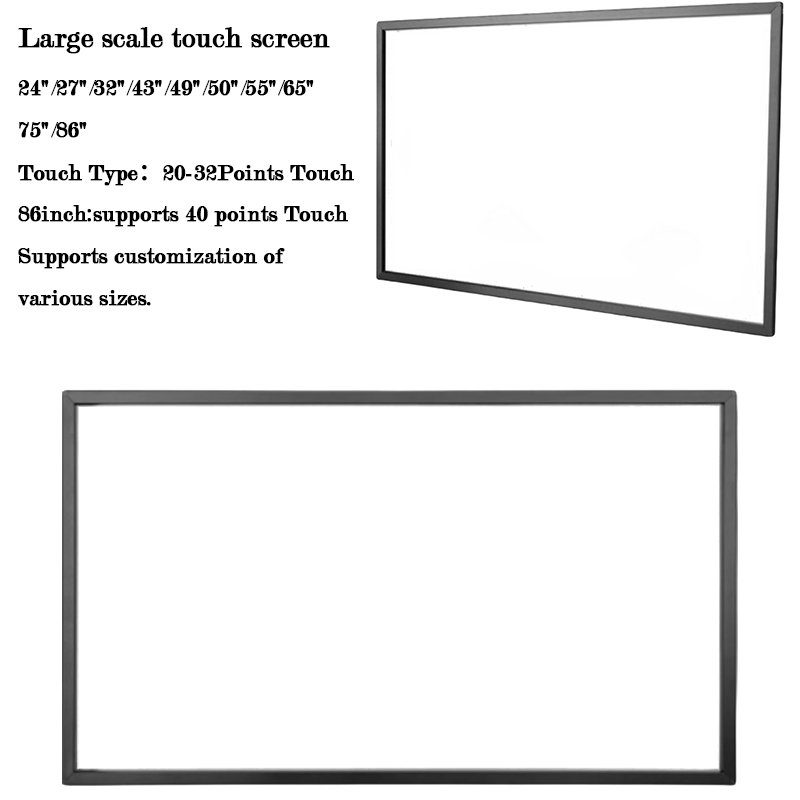

Large size touch frame


24',27",32",43",49",50",55",65",75",86"(16:9) ,Large size touch frame ,20pioints touch

24',27",32",43",49",50",55",65",75",86"(16:9)

Large size touch frame ,20points -32points

with 4mm or without glass.

Support different size customization


1、主要规格参数/ Specification

触控尺寸

Touch Screen Size

22"23.8"24"27"32"37"39"40"42"43"46"47"48"49"

50"52"55"58"60"65"69.5"70"75"80"82"84"85"86"

98"100"

触控压力

Touch Activation Force

零压力

No pressure required

透光率

Luminous Transmission

>92%(如无玻璃透光率为100%

>92%100% with no glass

报告分辨率

Reported Touch Resolution

免驱 32768*32768

Without Driver32768*32768

响应速度(多点模式)

Touch Response TimeMulti touch

10-15ms

响应速度(单点模式)

Touch Response TimeOne touch

7ms

最小识别点大小

Minimum Recognition Point Size

4mm*4mm

触摸物体大小识别

Touch Object Size Recognition

支持

Yes

接口类型

Interface

插座式 USB 线 1.5 米、插座式 5P

2、电子特性/ Electrical Specification

扫描帧率

Touch Refresh Rate

≥110

110Hz

通信类型

Communication

USB2.0 全速

USB 2.0 Full

Speed

供电方式

PowerSupply Mode

USB供电

USB*1

工作电压

Working Voltage

DC 5.0V±5%

平均电流

Average Current

≤200mA

功耗

Power Cunsumption

≤ 1.0W

LED寿命

LED Lifetime

60000小时

60000hours

容错情况 Fault-tolerant

传感器不连续损坏10%,仍可触控 Able to work if less than

10% non-consecutive sensors are damaged

3、环境特性/ Environmental Specification

湿度

Humidity

工作存贮湿度:90%RH40℃无结露

Up to 90% RH from 0°C to +40°C, non-condensing

温度范围

Temperature Range

工作温度:-10℃50℃

Working temperature:-1050存贮温度:-20℃60℃

Storage temperature:-2060

静电等级

ESD

按照EN 6100-4-2 2008:3级。接触式放电4KV,空气式放电 8KV

EN6100-4-22008:3level.4KVcontactdischarge and

8KV air discharge

抗光性

Anti-light Interference

具有抗光性

Excellent

4、软件特性/ Software Specification

固件升级方式

Firmware Upgrade

Windows10,Windows 8,Windows 7支持USB升级

USB Upgrade: Windows 8,Windows 7

支持平台(多点)

Support OSMulti touch

Windows10,Windows8,Windows7,Andriod

支持平台(单点)

Support OS One touch

WindowsXP,MacOS.Linux
