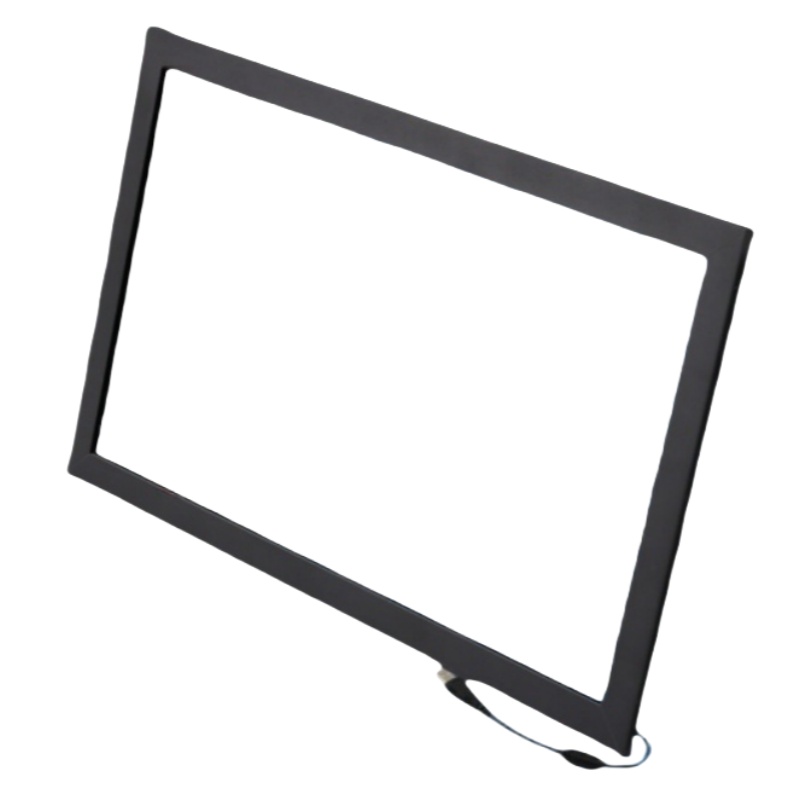

sunproof Infrared touch screen


Outdoor use sunproof Infrared touch screen,10.4”,15.1”,17.1”, 19.1”,21.6”,23.6”.with 3mm tempered glass (customizable) We can customize the product size for our customers, we can configure anti-glare glass for our customers. Ambient Light Tolerance: 10°, halogen lamp (Color Temperature = 2700K): illumination 30k Lux. 10°, sunlight: illumination 150k Lux Seal ability:IP65(Front) Operating Systems Support:Windows(xp78.110), Linux(≥2.6), Android(≥2.6), Vxwork(≥6.5)


Outdoor use sunproof Infrared touch screen,10.4”,15.1”,17.1”, 19.1”,21.6”,23.6”.with 3mm tempered glass (customizable)

We can customize the product size for our customers, we can configure anti-glare glass for our customers.

Ambient Light Tolerance:

10°, halogen lamp (Color Temperature = 2700K): illumination 30k Lux.

10°, sunlight: illumination 150k Lux

Seal ability:IP65(Front)

Operating Systems Support:Windows(xp78.110), Linux(≥2.6), Android(≥2.6), Vxwork(≥6.5)


1.规格参数 Specifications

触摸物体

Input Method

手指或其他不透明物体

Finger, gloved hand, or any other opaque stylus

触摸点数

Touch points

5

技术原理

Touch Technology

红外线阻挡检测

Infrared rays interception detection, no special surface coatings

可选尺寸

Available Size

10.4”,15.1”,17.1”, 19.1”,21.6”,23.6”

产品尺寸

Dimensions

见附件

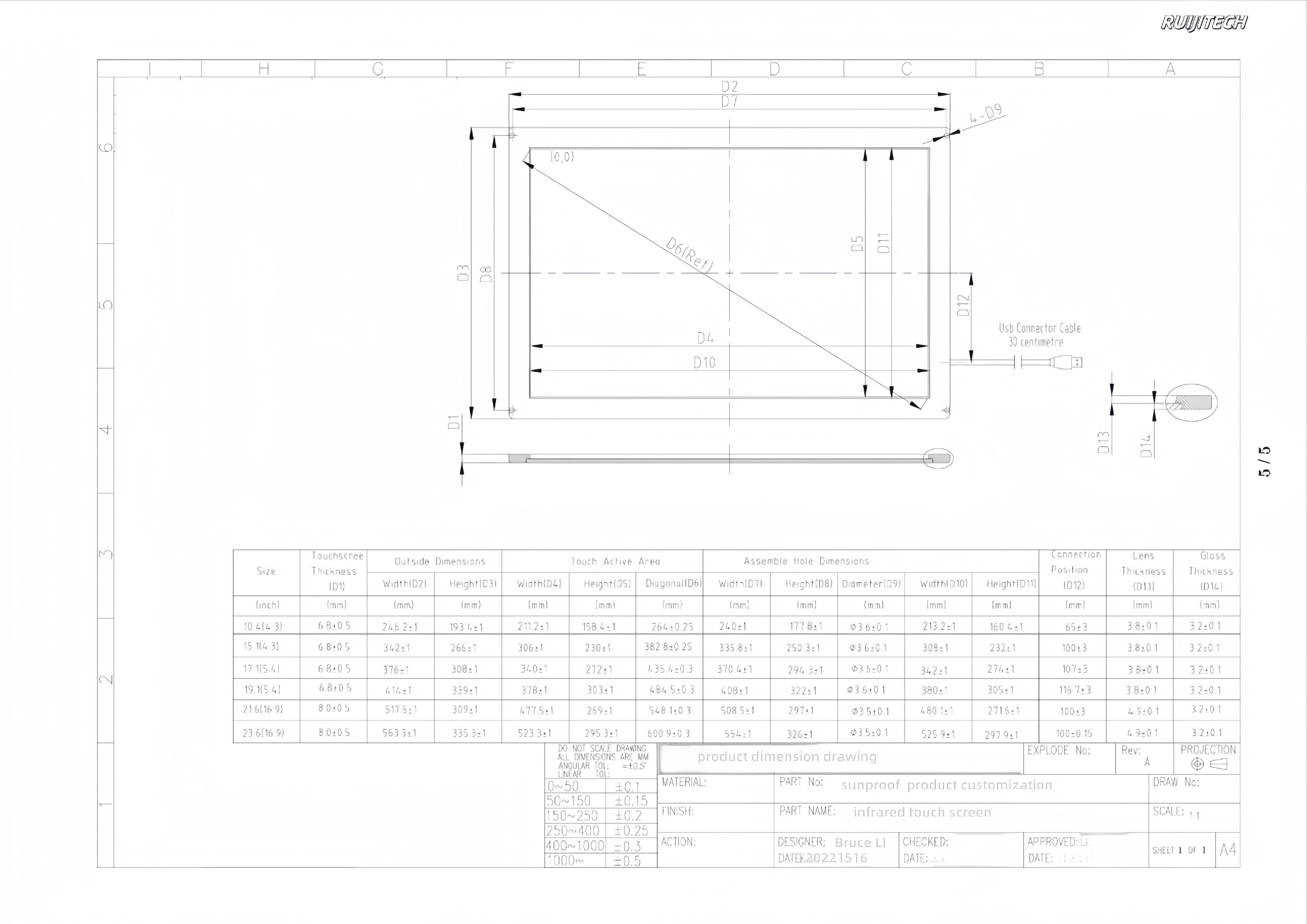

See Appendix Ⅰ

触摸有效区

Touch Active Area

见附件

See Appendix Ⅰ

玻璃

Glass

3mm 钢化玻璃(可定制)

3mm tempered glass (customizable)

透光率

Transmittance

≥88% with glass

外壳材质

Shell Material

上壳 Top Shell: 聚碳酸酯(PC)Polycarbonate (PC) 下壳 Bottom Shell: SGCC

有效触摸压力

Pressure Required to Trigger

Touch Event

无需压力

No pressure required

2.电气规格 Electrical Specifications

分辨率

Controller reported resolution

32767×32767

触摸精度

Touch accuracy

<1mm(中心区域 central area)

<2mm(边缘区域 edge area)

触摸物直径

Touch object diameter

≥7mm(单点 single point)

≥9mm(多点 multipoint)

触摸输出

Output

触摸点坐标

Coordinates

校准

Calibration

无需校准或四点校准

Not required or Four-point calibration, no drift

响应时间

Response Time

≥10ms

供电

Power requirements

USB供电(DC5V±5% @ 500mA)

Powered by USB (DC5V±5% @ 500mA)

功耗

Power consumption

<1.5W

MTBF

61000H

3.产口接口规格 Interface Specifications

接口类型

Interface Type

USB HID

即插即用

Plug and Play

免驱

Plug and play and HID compatible

连接类型

Connector Type

Type A

4.应用环境参数Environmental Specifications

温度

Temperature

工作温度 Operating: -2070℃ 存储温度 Storage: -4085℃

湿度

Relative Humidity

工作 Operating: 10%-90% RH, 40℃ 无凝结 non-condensing 存储 Storage: 10%-90% RH, 40℃ 无凝结 non-condensing

静电防护

Electrostatic Protection

EN61000-4-2 2008: L4, B: 接触放电 8kV, 空气放电 15kV

EN61000-4-2 2008: Level 4, Class B. Contact discharge 8kV, air discharge 15kV on USB connector pins

抗光性能

Ambient Light Tolerance

10°, 卤素灯(色温=2700K): 照度 30k Lux

10°, halogen lamp (Color Temperature = 2700K): illumination 30k Lux

10°, 阳光: 照度 150k Lux

10°, sunlight: illumination 150k Lux

EMC

CE, FCC Class B Compatible

防护等级

Seal ability

正面 IP65

IP65(Front)

5.
软件规格 Software Specifications

固件升级

Firmware Upgradability

支持

Yes

设备类型

Device Type

触摸模式 Touch (with gesture support per OS) 鼠标模式 Mouse (Click, drag, double click, right-click)

校准

Calibration

四点校准, 无漂移

Four-point calibration, no drift

多屏匹配

Multi-Monitor Support

手动

Manually Binding

操作系统

Operating Systems Support

Windows(xp78.110), Linux(≥2.6), Android(≥2.6), Vxwork(≥6.5)

THE sunproof  Series touchscreen is RoHS compliant.
