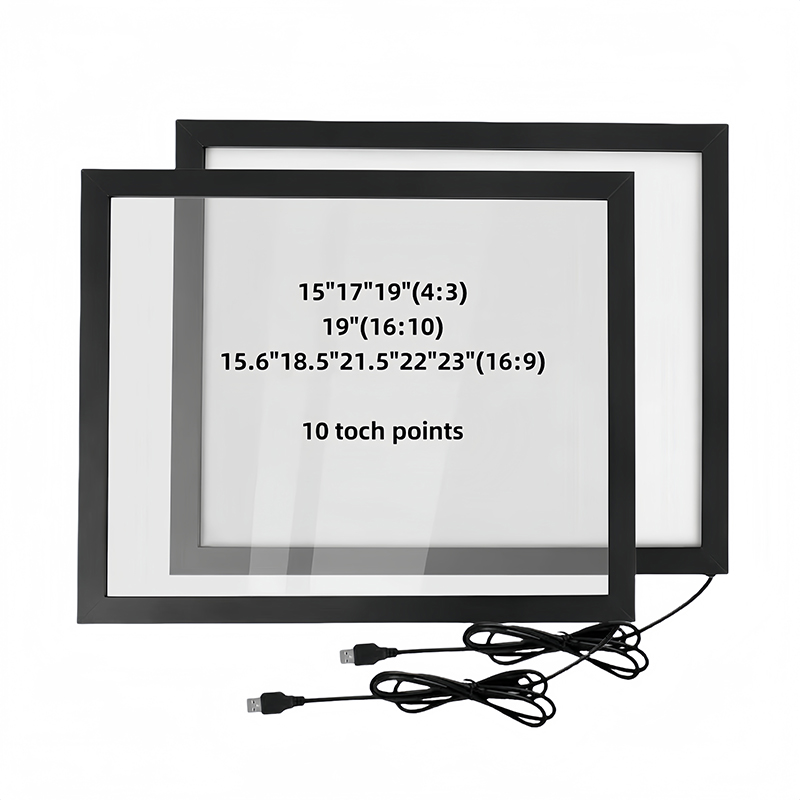

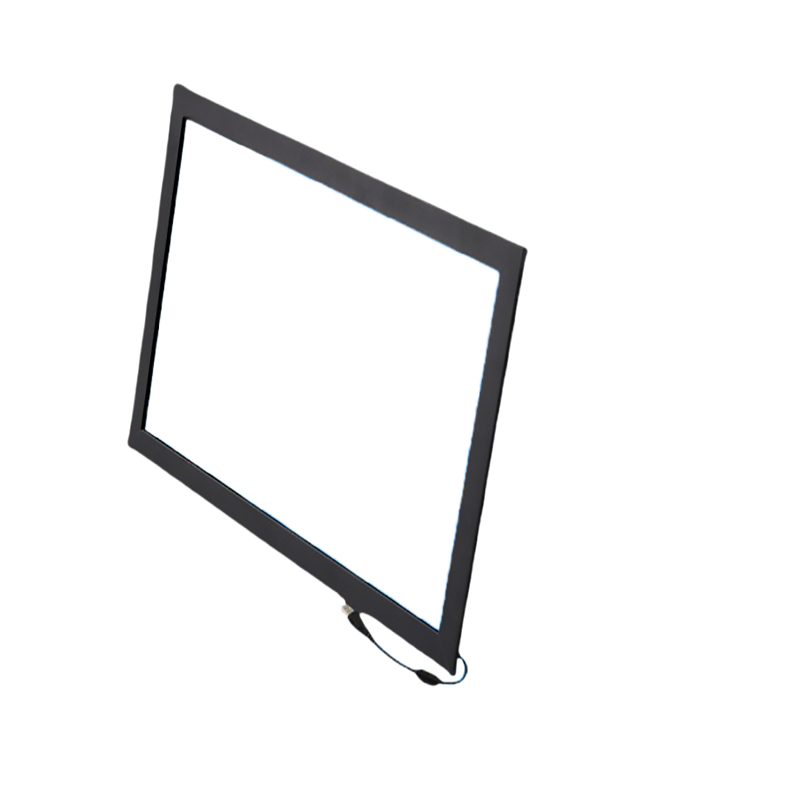

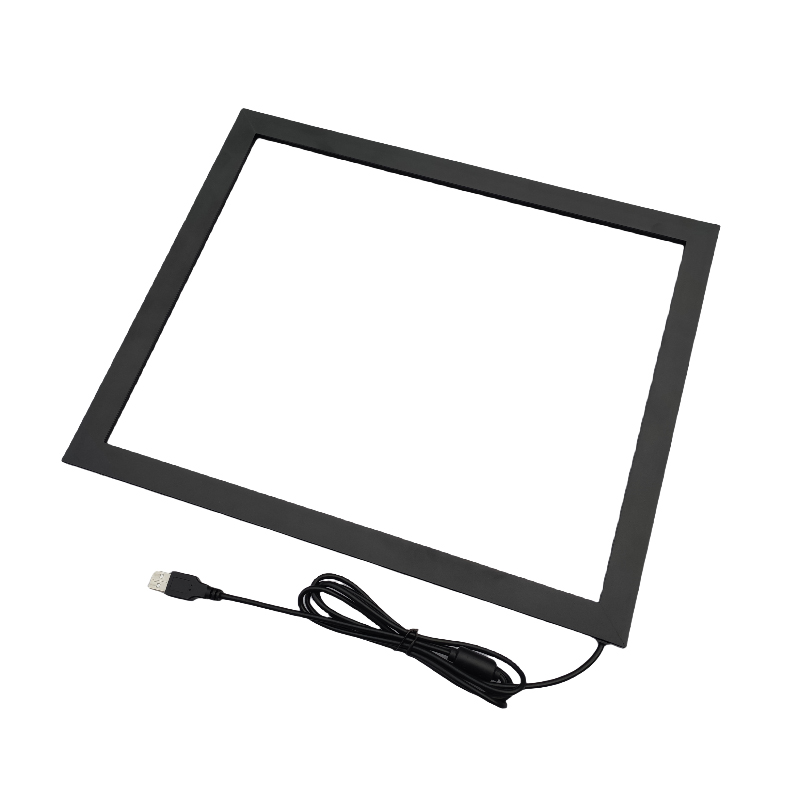

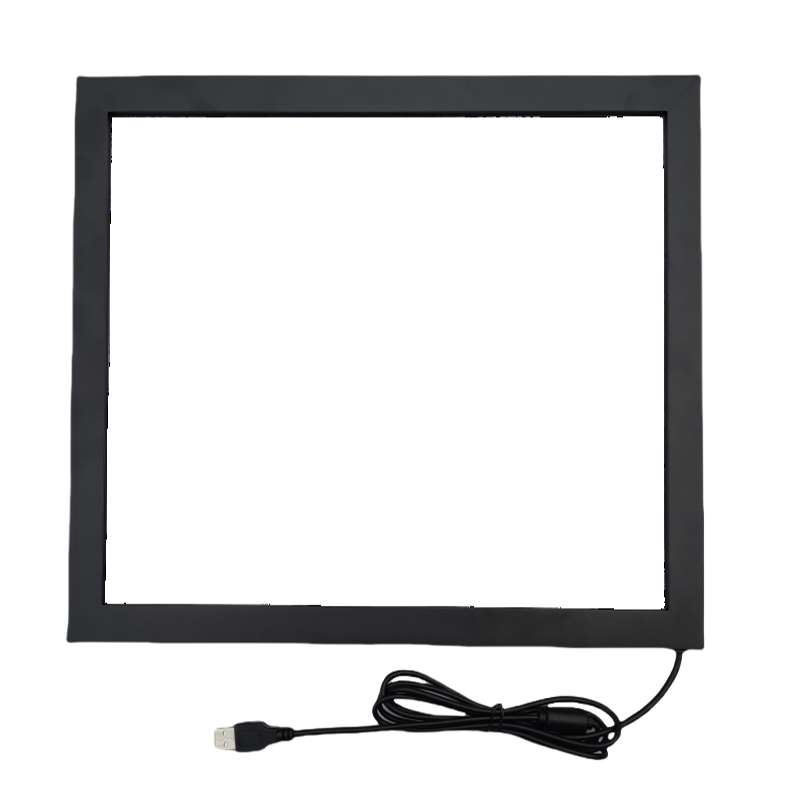

Multi-point small size infrared touch screen, with 3mmtempered glass, 10 points touch ,Product thickness: 8mm
Multi-point small size infrared touch screen, with 3mmtempered glass, 10 points touch ,Product thickness: 8mm
15"(4:3)
17"19"(5:4)
15.6",18.5",21.5",,23.6"(16:9)
19",22" (16:10)
规格参数SPEXIFICATION PARAMETER:
|
项目item |
参数parameter |
|
支持尺寸size |

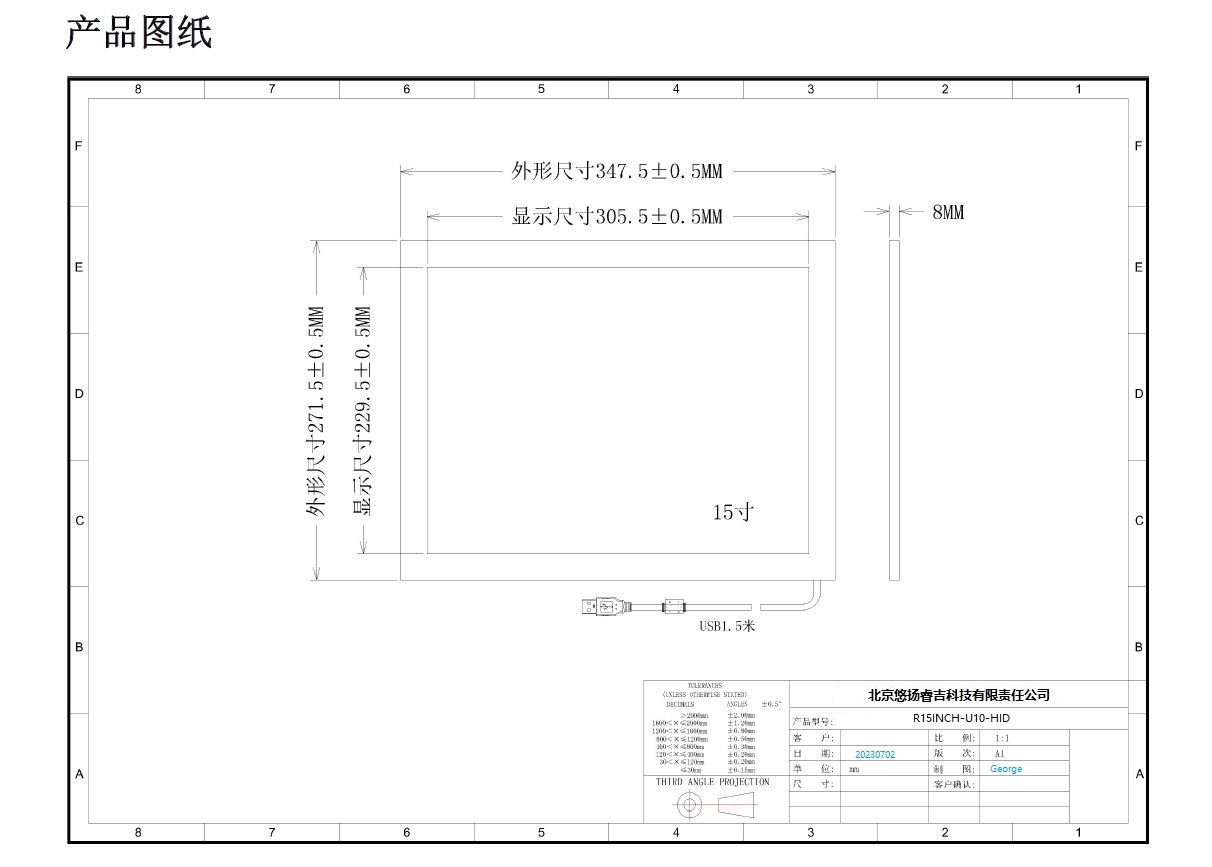

15"(4:3)

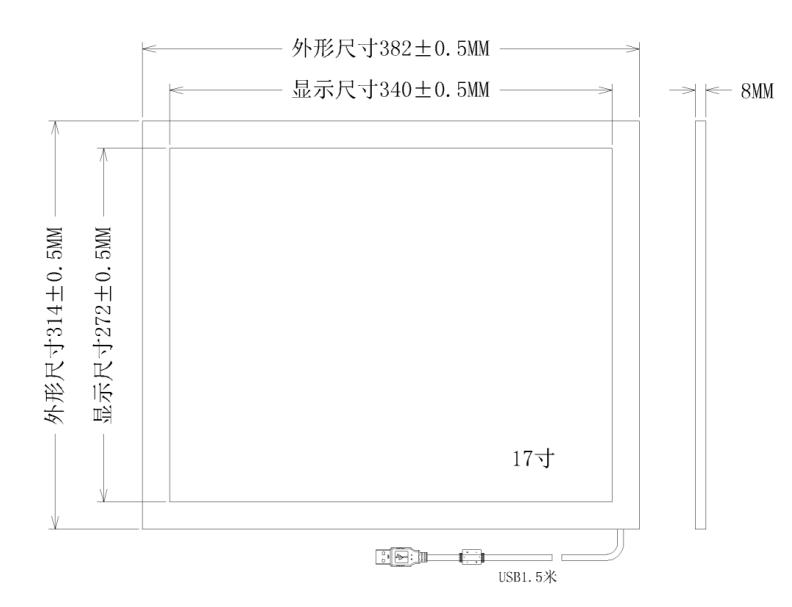

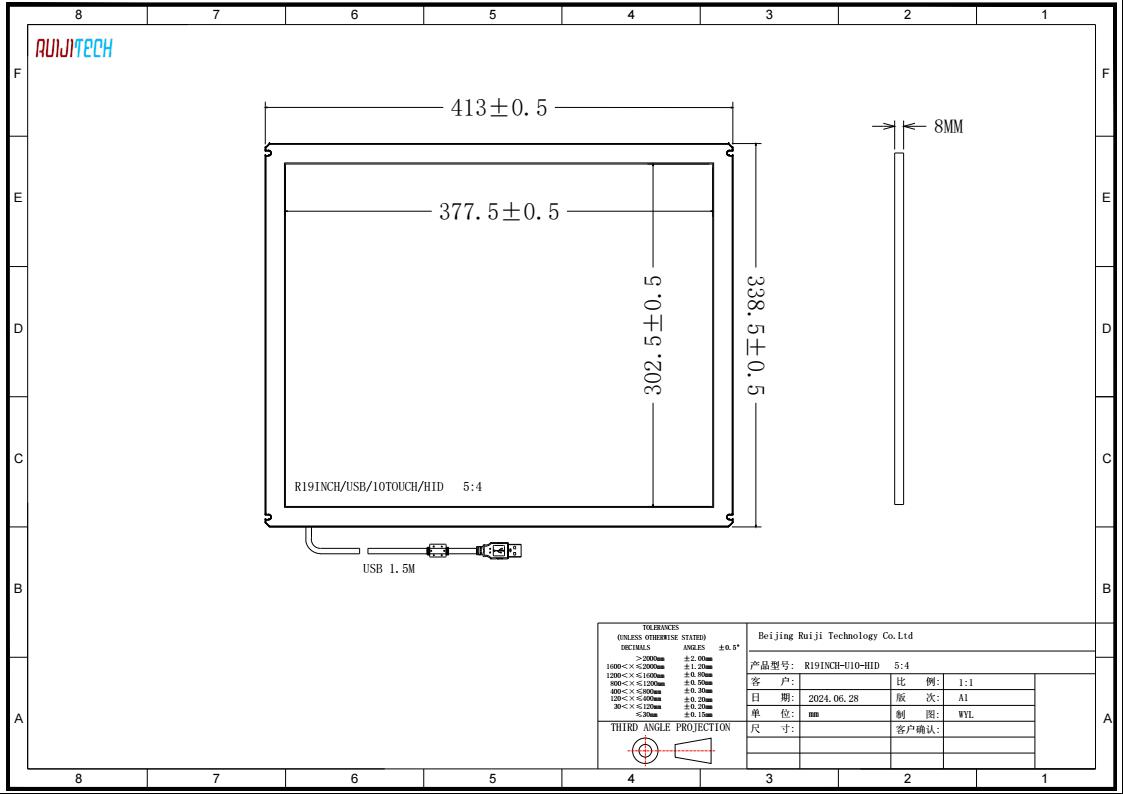

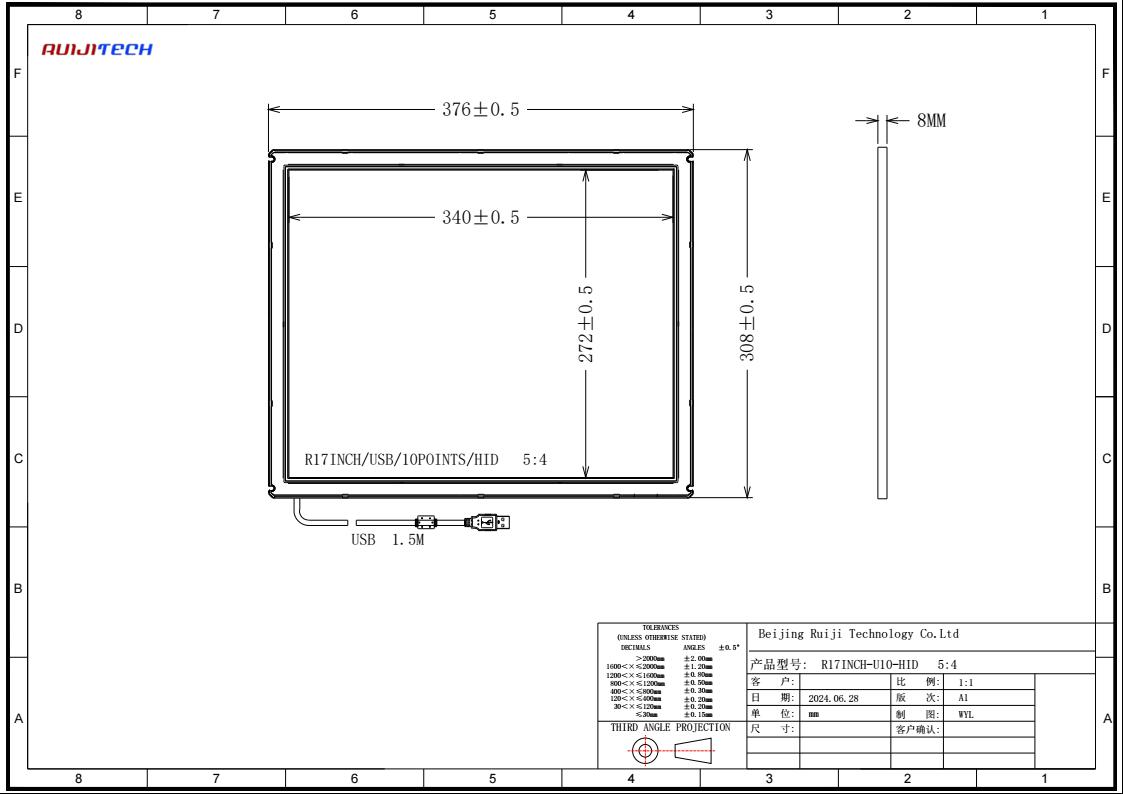

17"19"(5:4)

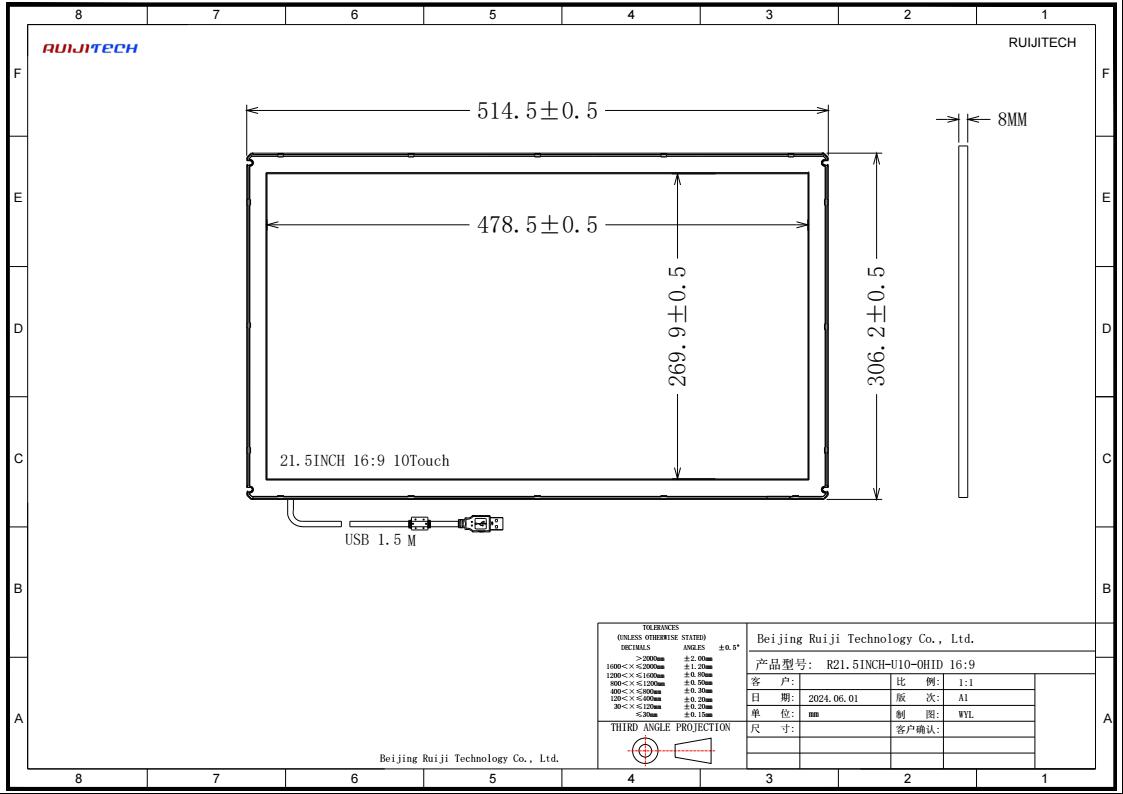

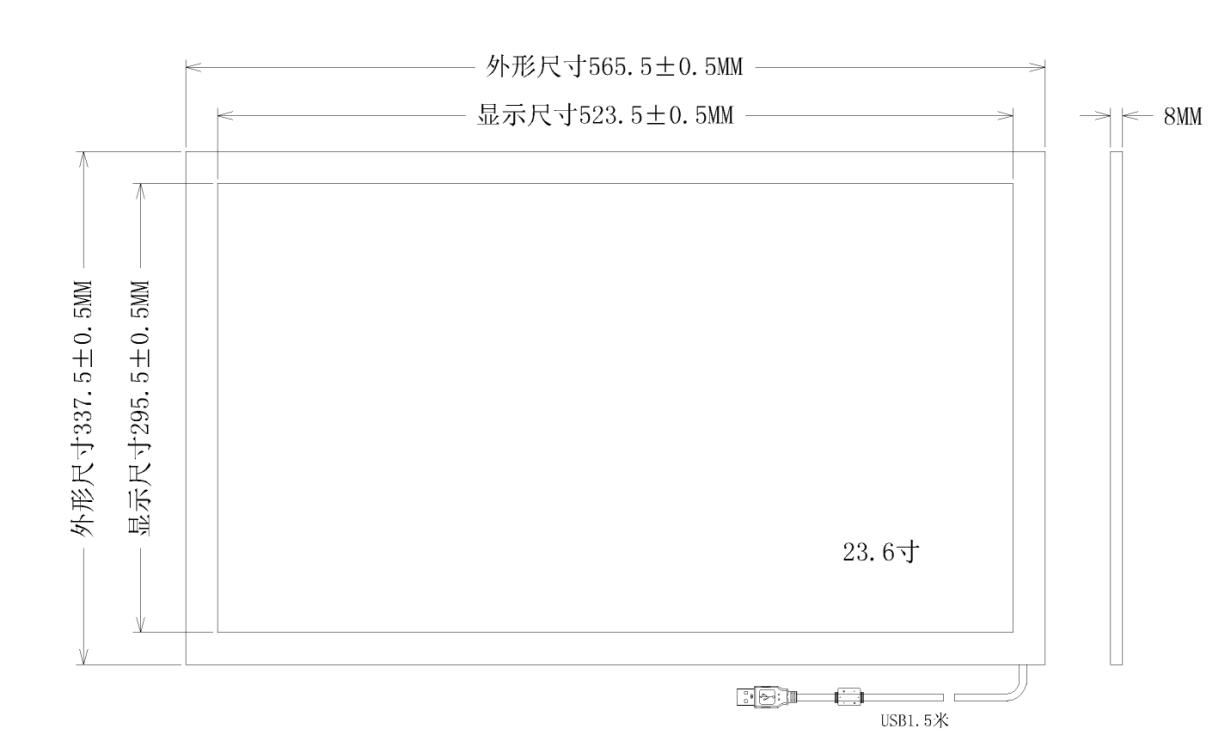

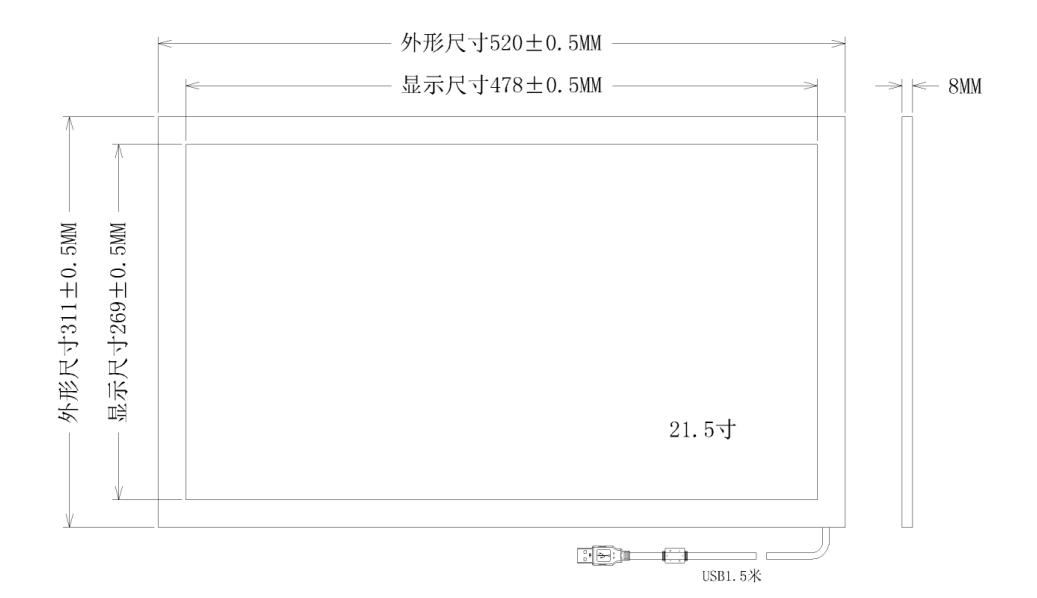

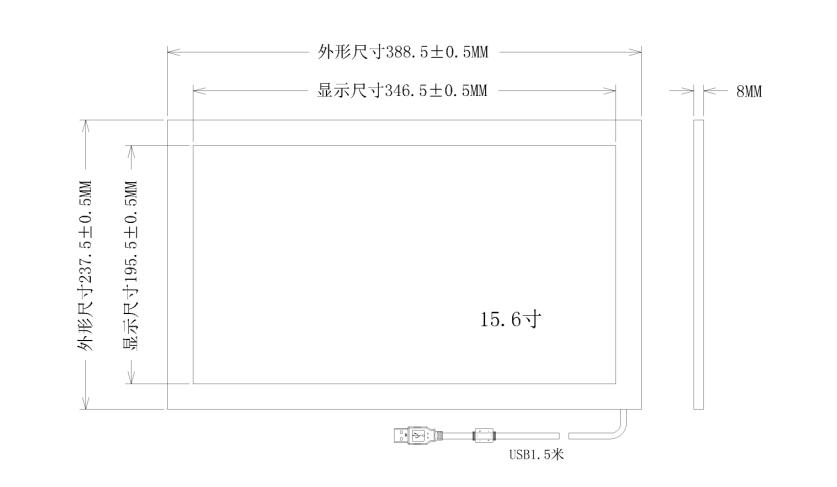

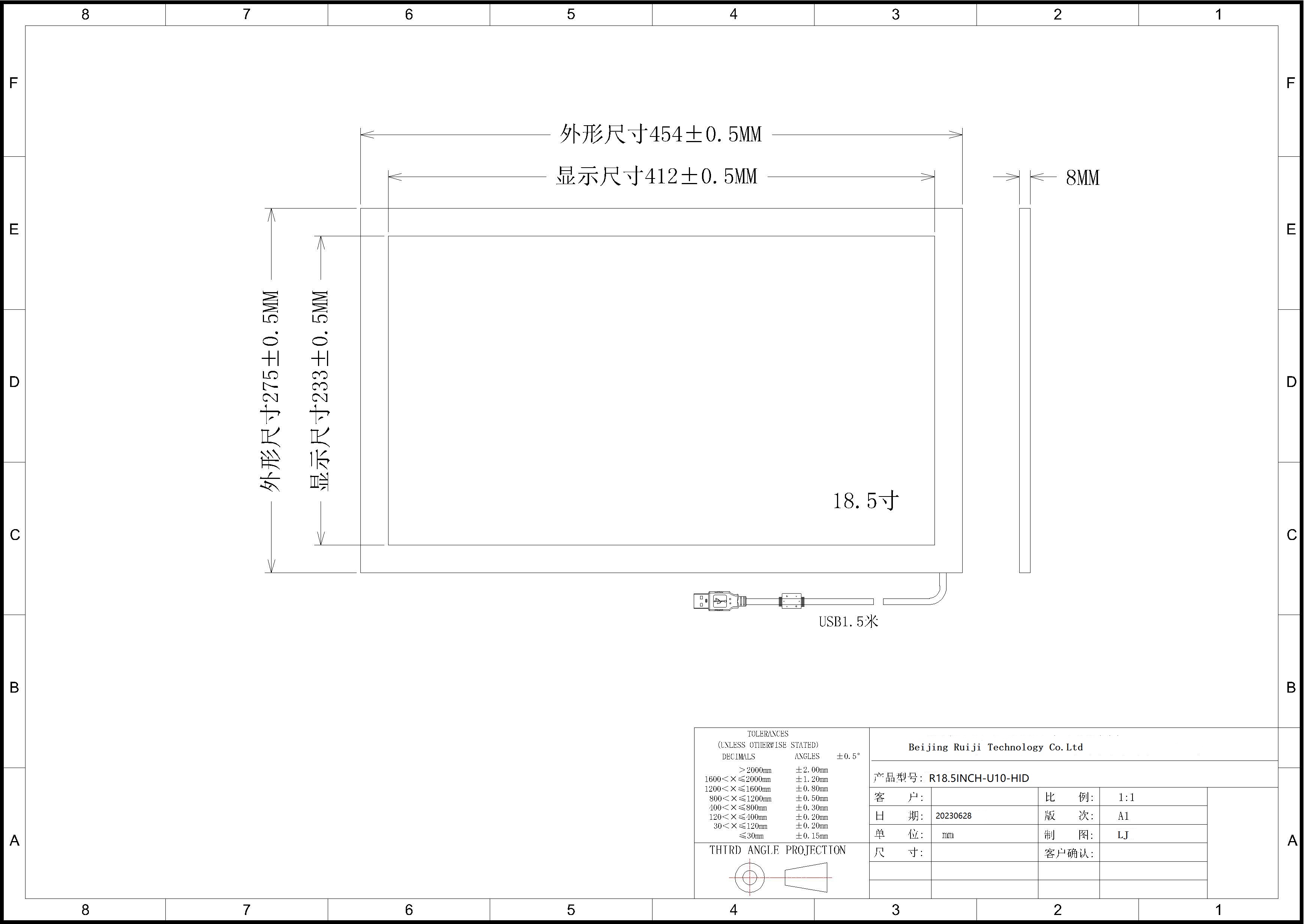

15.6",18.5",21.5",23.6"(16:9)

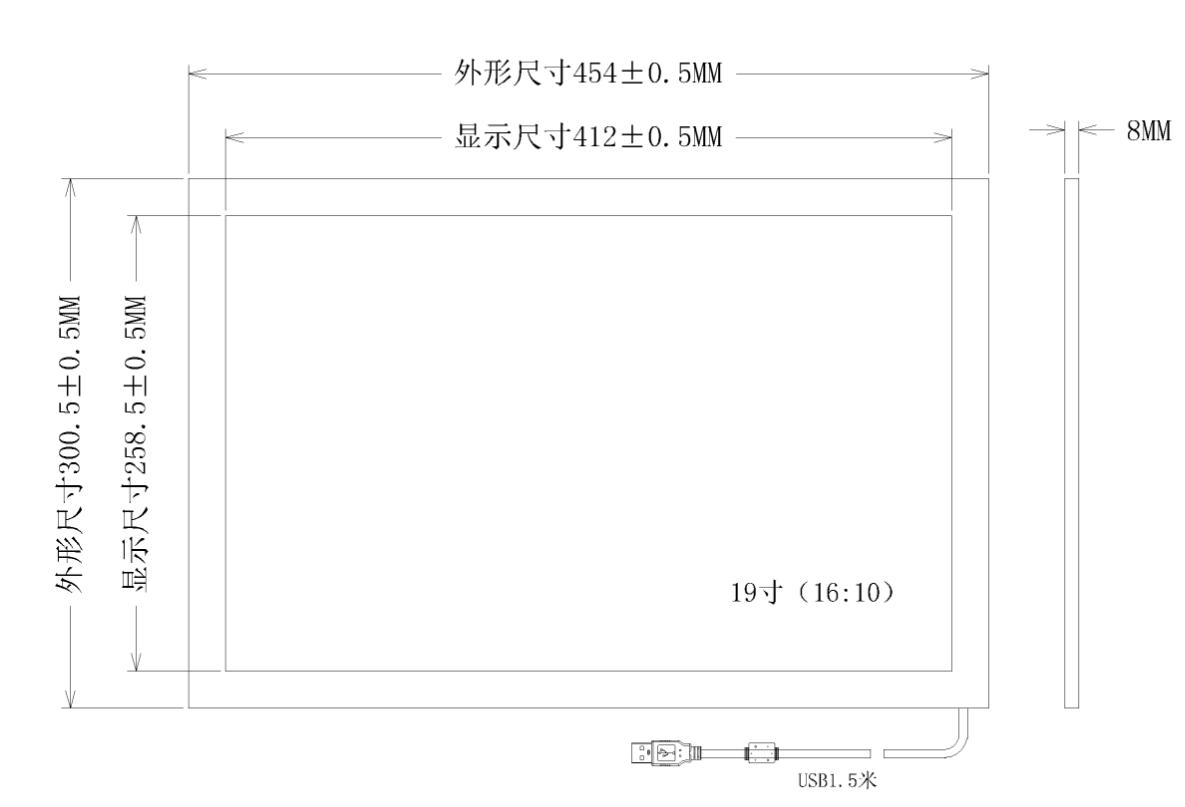

19",22" (16:10) |
|
触摸点数touchpoints |
10 点, 10 tuch points |
|
最小识别直径 Minimum identification diameter |
8X8mm |
|
画线间距Line spacing |
20mm |
|
触摸精度Touch accuracy |
中间区域小于1mm 边缘小于3mm The middle area is less than 1mm and the edge is less than 3mm |
|
支持分辨率 Support resolution |
32768×32768 |
|
响应速度response speed |
≤10ms |
|
输入方法Input method |
手指，画笔等任意不透明触摸物 Touch any opaque object with finger, brush, etc |
|
校准Calibration |
4 点校准4-points calibration |
|
点击次数The number of clicks |
无限次is unlimited |
|
触摸压力Touch pressure, |
无压力要求no pressure requirement |
|
接口类型interface type |
USB 2.0+UATR |
|
线长wire length |
≤25m（大于5m应带有放大器,大于10m带放大器及电源供电） ≤25m (greater than 5m should have an amplifier, greater than 10m with an amplifier and power supply) |
|

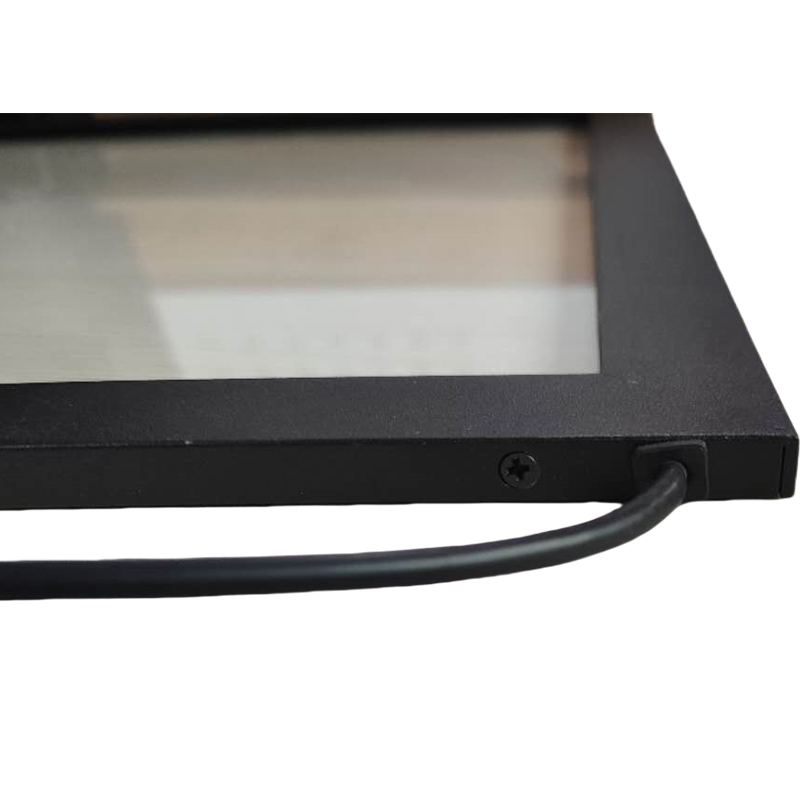

框架材质Frame material
|
铝合金边框 Aluminum alloy available |
|
玻璃材质The glass material |
采用钢化玻璃tempered glass |
|
相关特性Related铝合金边框 |
安装简便；兼容性强；features Easy to install; Strong compatibility; |
|
项目 |
参数 |
|
|
操作温度 operating temperature |
－15℃~55℃ |
|
|
存储温度 storage temperature |
－40℃~75℃ |
|
|
操作湿度 operation humidity |
10% ~ 90% RH, |
无凝结物 Non-condensing matte |
|
存储湿度 Storage humidity |
10% ~ 90% RH, |
无凝结物 Non-condensing matte |
|
抗光性能sunproof |
<80000Lux（选用不同的红外管，强度不一样） <80000Lux (Choose different infrared tubes, the strength is not the same) |
|
|
静电等级 Electrostatic grade |
按照EN6100-4-22008:3级。接触式放电4KV, 空气式放电 8KV（装入整机中测试） In accordance with EN6100-4-22008:3 level. Contact discharge 4KV, air discharge 8KV (loaded into the machine test) |
|
|
环境特性系统特性 |
Environment Characteristics System characteristicsSystem characteristics |
|
固件升级firmware upgrade |
支持support |
|
操作系统 OS |
Windows7、Windows8、Windows10、Android、 Linux、Mac(鼠标)、Windows xp（单点） Windows7, Windows8, Windows10, Android, Linux, Mac(mouse), Windows xp (Single point) |
|
API(软件接口) API(Software interface) |
支持提供动态链接库，支持自定义 API 接口 Supports dynamic link libraries and custom API interfaces |
可靠性测试reliability testing
|
项目 |
参数 |
|
高温存储 high-temperature storage |
100℃，20小时，常温2小时。 100℃, 20 hours, room temperature 2 hours. |
|
低温存储Low temperature storage |
-40℃，20小时，常温2小时。 -40℃, 20 hours, room temperature 2 hours. |
|
高低温循环工作 High and low temperature cycle work |
80℃，48小时，-10℃,12小时。 80℃, 48 hours, -10℃,12 hours. |
|
高湿工作High humidity operation |
80℃，85%，20小时。 High humidity operation 80℃, 85%, 20 hours. |
|
USB 插拔测试USB plug test |
>2000 次插拔 USB 插拔测试USB plug test |
