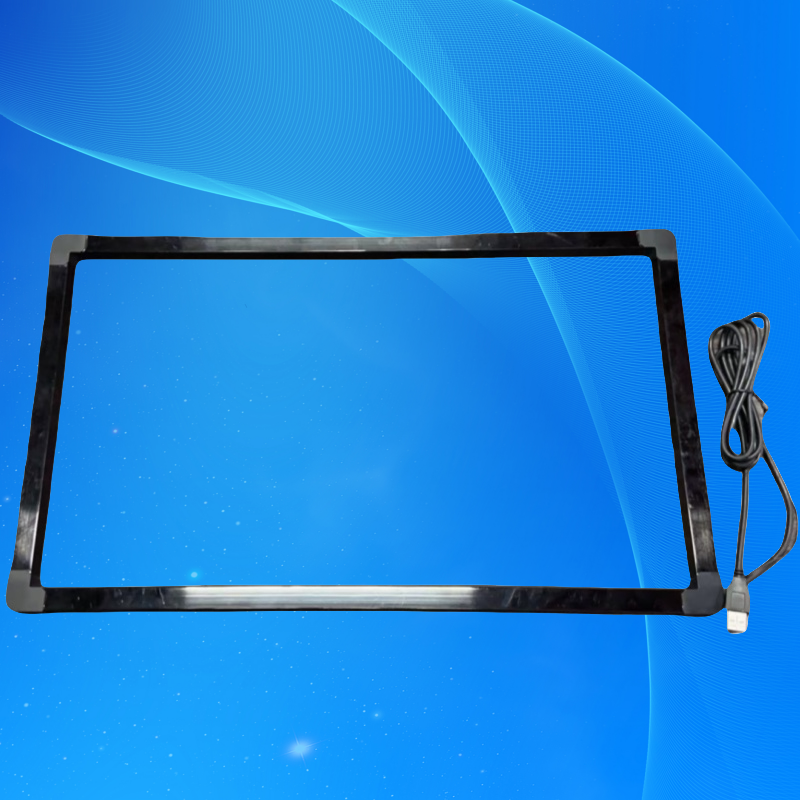

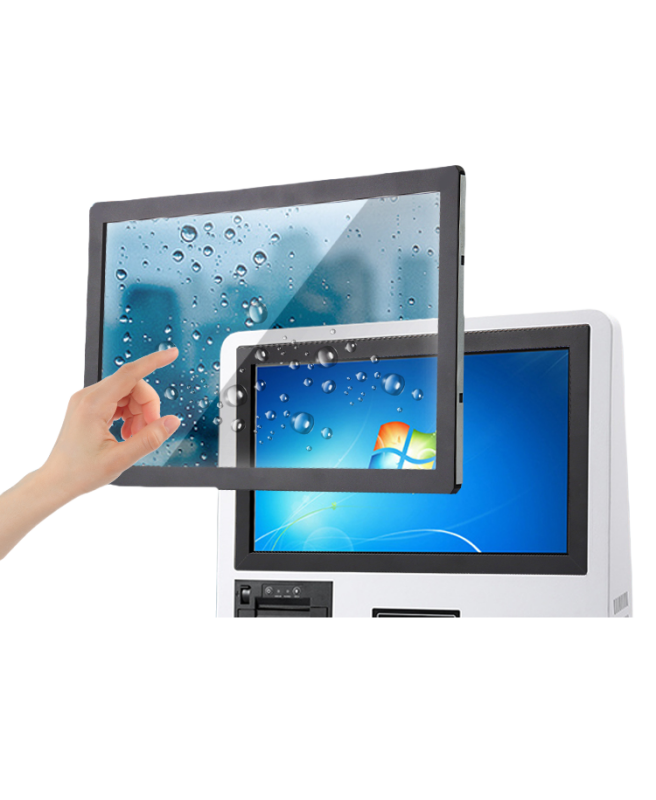

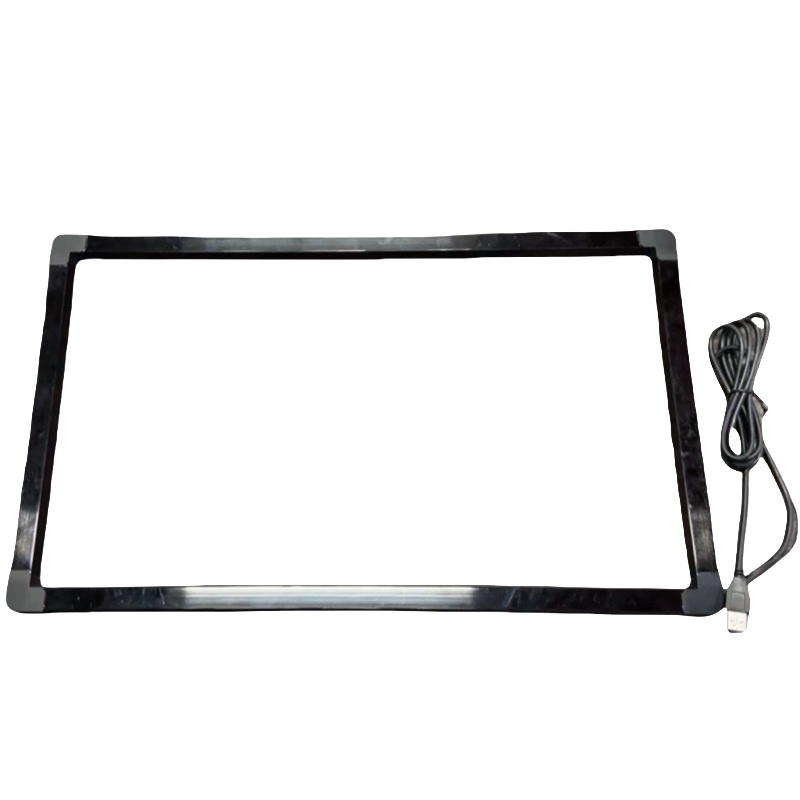

Waterproof touch frame Support any size customization 15inch-86inch,IP65 OR IP67

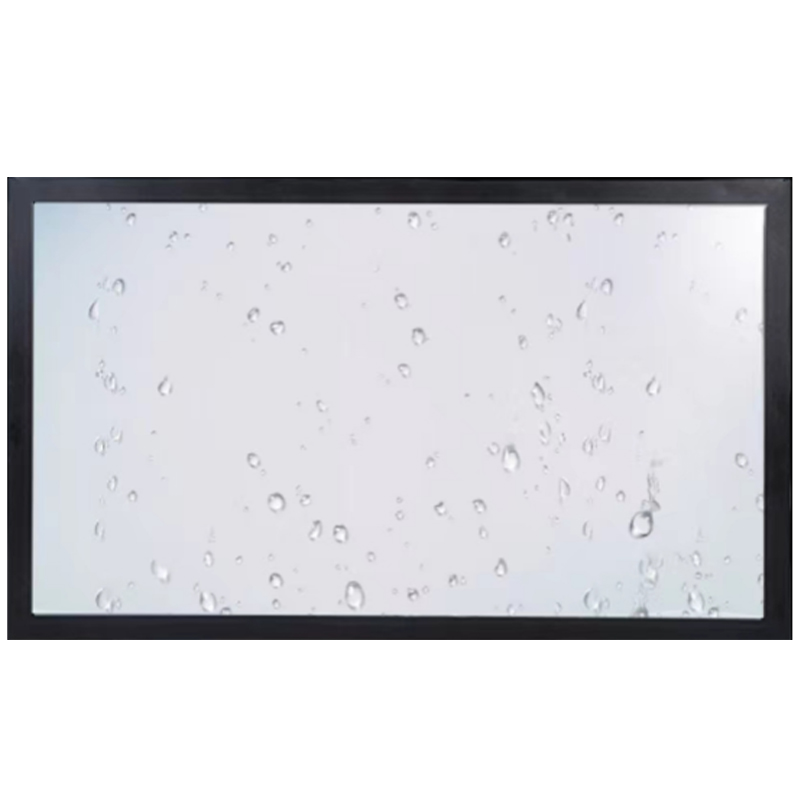

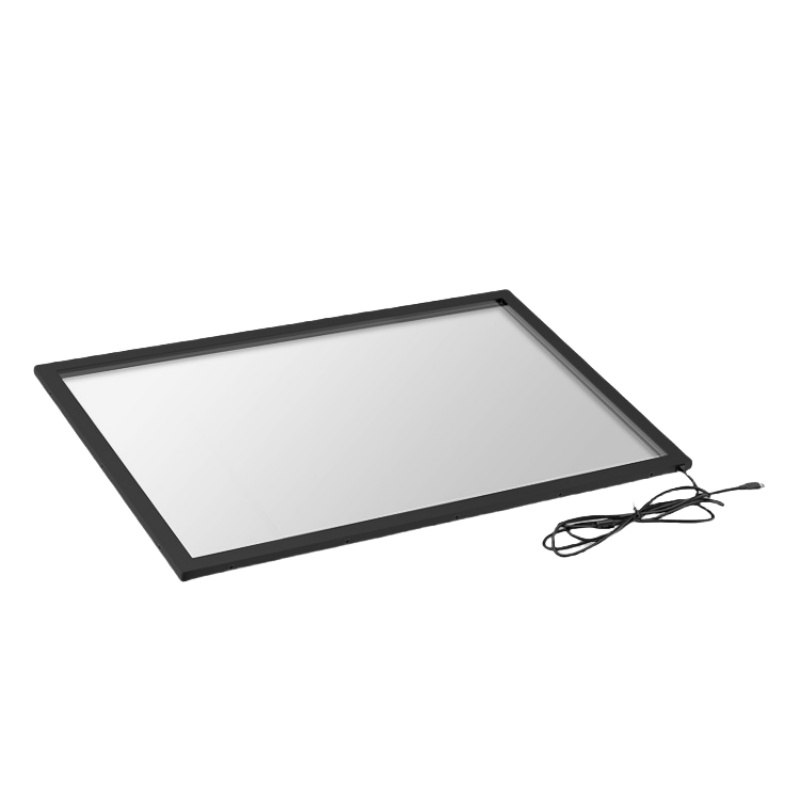

Waterproof touch frame
with AG glass or tempered glass
20points touch.

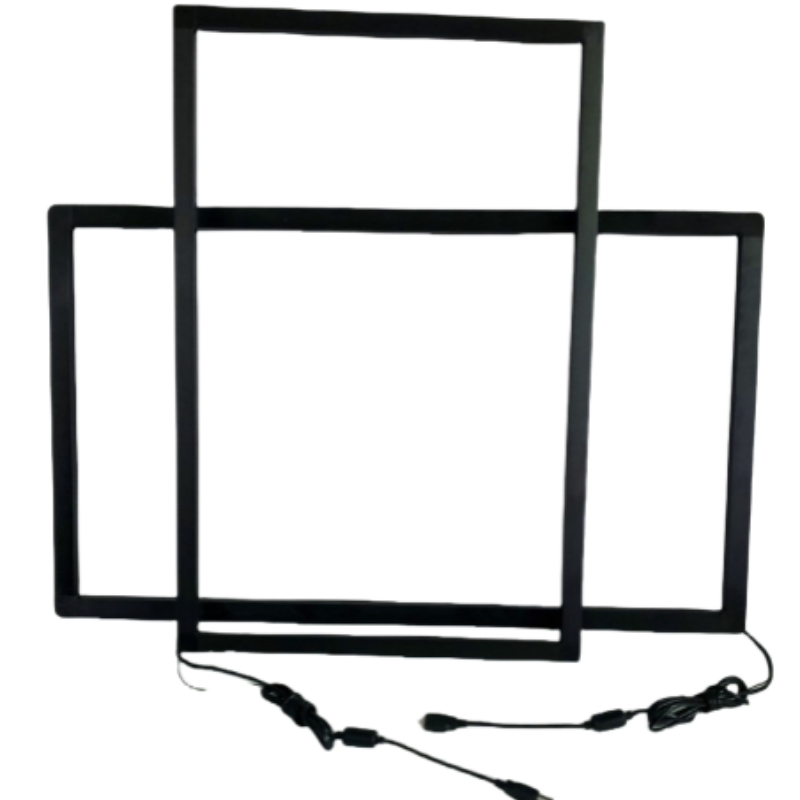

Support any size customization
IP65 OR IP67
1、主要规格参数/ Specification
触控尺寸 Touch Screen Size |
32"-65" |
触控压力 Touch Activation Force |
零压力 No pressure required |
透光率 Luminous Transmission |
>92%(如无玻璃透光率为100%) >92%(100% with no glass) |
报告分辨率 Reported Touch Resolution |
免驱 32768*32768 Without Driver:32768*32768 |
响应速度(多点模式) Touch Response Time(Multi touch) |
10-15ms |
响应速度(单点模式) Touch Response Time(One touch) |
7ms |
最小识别点大小 Minimum Recognition Point Size |
4mm*4mm |
触摸物体大小识别 Touch Object Size Recognition |
支持 Yes |
接口类型 Interface |
插座式 USB 线 1.5 米、插座式 5P |
扫描帧率 Touch Refresh Rate |
≥120帧 ≥120Hz |
|
通信类型 Communication |
USB2.0 全速 USB 2.0 Full |
Speed |
供电方式 PowerSupply Mode |
单USB供电 USB*1 |
|
工作电压 Working Voltage |
DC 5.0V±5% |
|
平均电流 Average Current |
≤200mA |
|
功耗 Power Cunsumption |
≤ 1.0W |
|
LED寿命 LED Lifetime |
60000小时 60000hours |
|
容错情况 Fault-tolerant |
传感器不连续损坏10%,仍可触控 Able to work if less than 10% non-consecutive sensors are damaged |
湿度 Humidity |
工作存贮湿度:90%RH在40℃无结露 Up to 90% RH from 0°C to +40°C, non-condensing |
温度范围 Temperature Range |
工作温度:-10℃~50℃ Working temperature:-10℃~50℃ 存贮温度:-20℃~60℃ Storage temperature:-20℃~60℃ |
静电等级 ESD |
按照EN 6100-4-2 2008:3级。接触式放电4KV,空气式放电 8KV EN6100-4-22008:3level.4KVcontactdischarge and 8KV air discharge |
抗光性 Anti-light Interference |
具有抗光性 Excellent |
固件升级方式 Firmware Upgrade |
Windows10,Windows 8,Windows 7支持USB升级 USB Upgrade: Windows 8,Windows 7 |
支持平台(多点) Support OS(Multi touch) |
Windows10,Windows8,Windows7,Andriod |
支持平台(单点) Support OS (One touch) |
WindowsXP,MacOS.Linux |
